Spectrum analyser (s ?)

[Jean d'Oran]

Hello everyone!
I have a small problem: I can't find a help file for the Cherry Audio spectrum analyzer module. Does it exist ? There is not even any data in the about window !
I would like to get everything possible out of it, and for that I am convinced that a few example patches, for example, would be a valuable help : some use the modules differently than usual, and our exchanges are always enriching

Thanks in advance !

[ColinP]

There isn't any documentation for the Spectrum Analyzer, nor one or two other CA modules like the Poly Vintage Oscillator if I recall correctly.

I used a couple of Spectrum Analyzers to build a simple vocoder in one of my demo patches.

https://adroitsynthesis.com/adroit-cust ... s/#Vocoder

[utdgrant]

Yeah, it's a weird one. There isn't even a description in the store. I didn't find it much use as a visualiser - I always use Voxengo SPAN inside the Plug-In Host / Mini Plug-In Host.

I think that it might be more useful as the analysis side of a vocoder, giving you 'envelope follower outputs' for each passband. I can envisage how you could create a full vocoder by using two CA Spectrum Analyser modules and ten VCAs. One CA SA would extract the audio outputs for the carrier signal (say, a poly sawtooth wave). The other would provide the envelope followers for the modulation signal (say, a human voice). I'll experiment with this idea later...


Edit: JINX! I see Colin and I were thinking along the same lines and cross-posted.

[utdgrant]

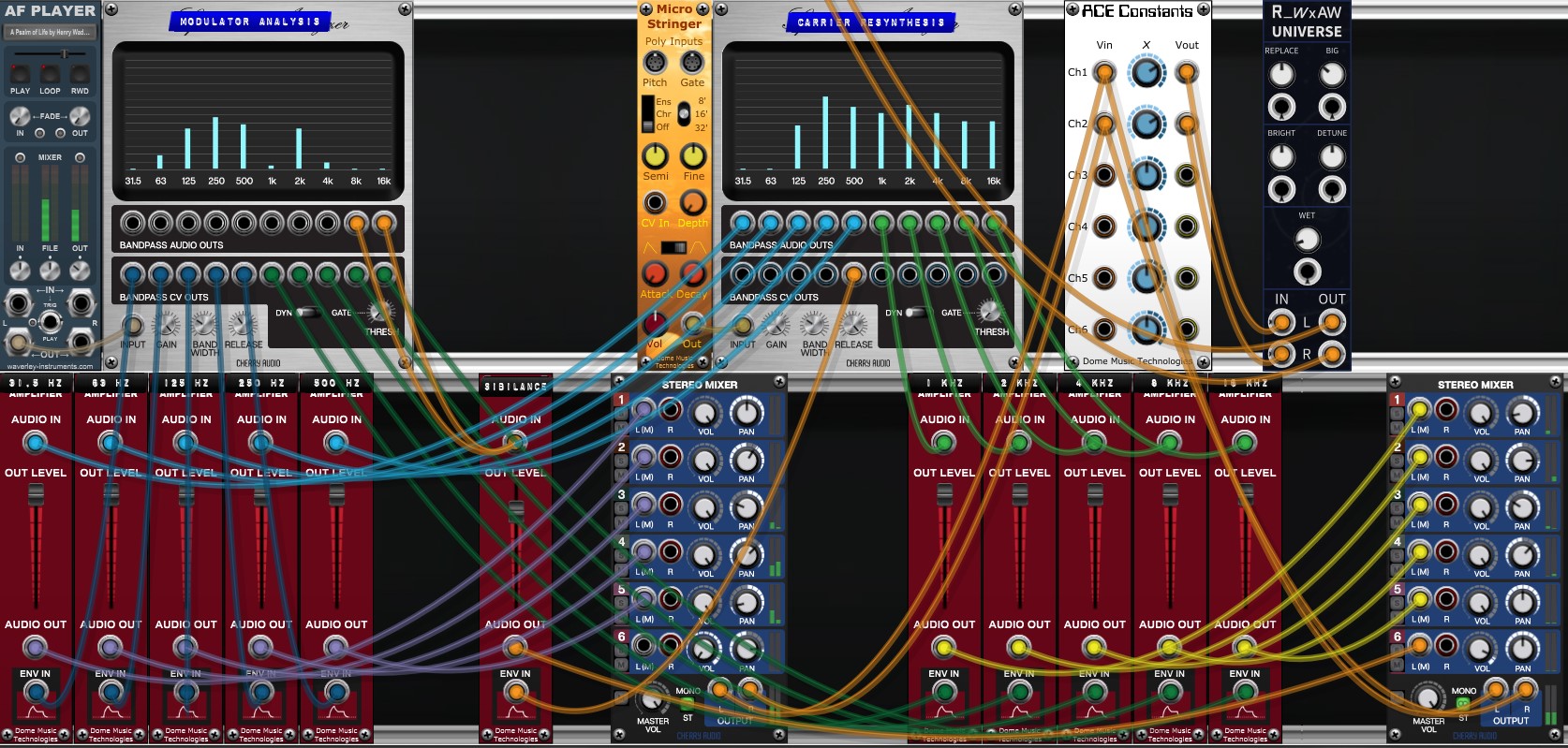

This is what I came up with tonight. It's very similar to the vocoder that Bob Moog came up with for Wendy Carlos to use in the Clockwork Orange soundtrack.


First Principles Vocoder.voltagepreset

(29.39 KiB) Downloaded 86 times

YouTube demo
