Free Tonewheel Organ for VM Nucleus

Post by utdgrant »

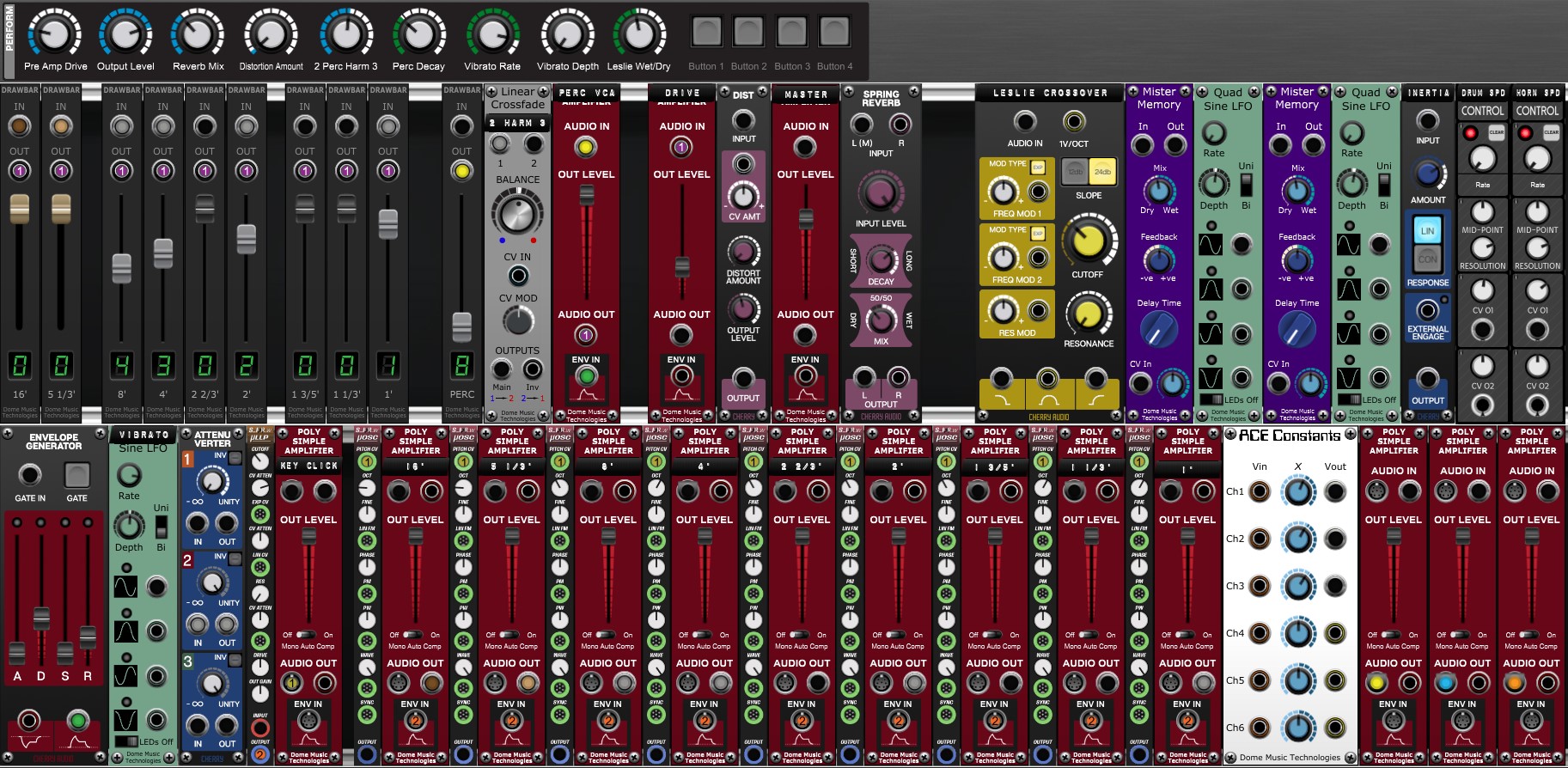

This patch is a variation on the tonewheel organ patches I created for Voltage Modular Core.

It uses VM Nucleus, plus modules from the Dome Music Technologies Freebie Collection, R_Ware Control and the Micro Poly Free Bundle from S_F x R_W.

The patch is quite a bit more thirsty for CPU power than the ones I created under VM Core. I don't know if it's due to the sheer number of modules involved, multiple poly bus cables, a specific module or what. I've set the Number Of Voices count to 3 initially, but even that is pushing my Core i7 towards 50% CPU load.
I used the S_F R_W Micro Ladder Low Pass filter to smooth out the edges of the gate signal to reduce key click noise. If you want to reintroduce key-click, simply raise the cut-off frequency to taste.

Leslie cabinet speaker speed is governed by the Mod Wheel.
Free Tone Wheel.voltagepreset
(54.96 KiB) Downloaded 23 times
______________________
Dome Music Technologies
User avatar
utdgrant
Posts: 596
Joined: Wed Apr 07, 2021 8:58 am
Location: Scotland
Contact:

Re: Free Tonewheel Organ for VM Nucleus

Post by utdgrant »

To reduce CPU load and hence boost polyphony, simply remove the Micro Poly Oscillator and Poly Simple Amplifier for any drawbars which are set to a value of "0" in your patch. The Micro Poly Oscillator is to the left of the Poly Simple Amplifier with the footage label on it.
