MXR Pitch Transposer

For discussion of the Voltage Modular synthesis ecosystem.
Post Reply
martin17
Posts: 20
Joined: Tue Nov 28, 2023 7:58 am

MXR Pitch Transposer

Post by martin17 »

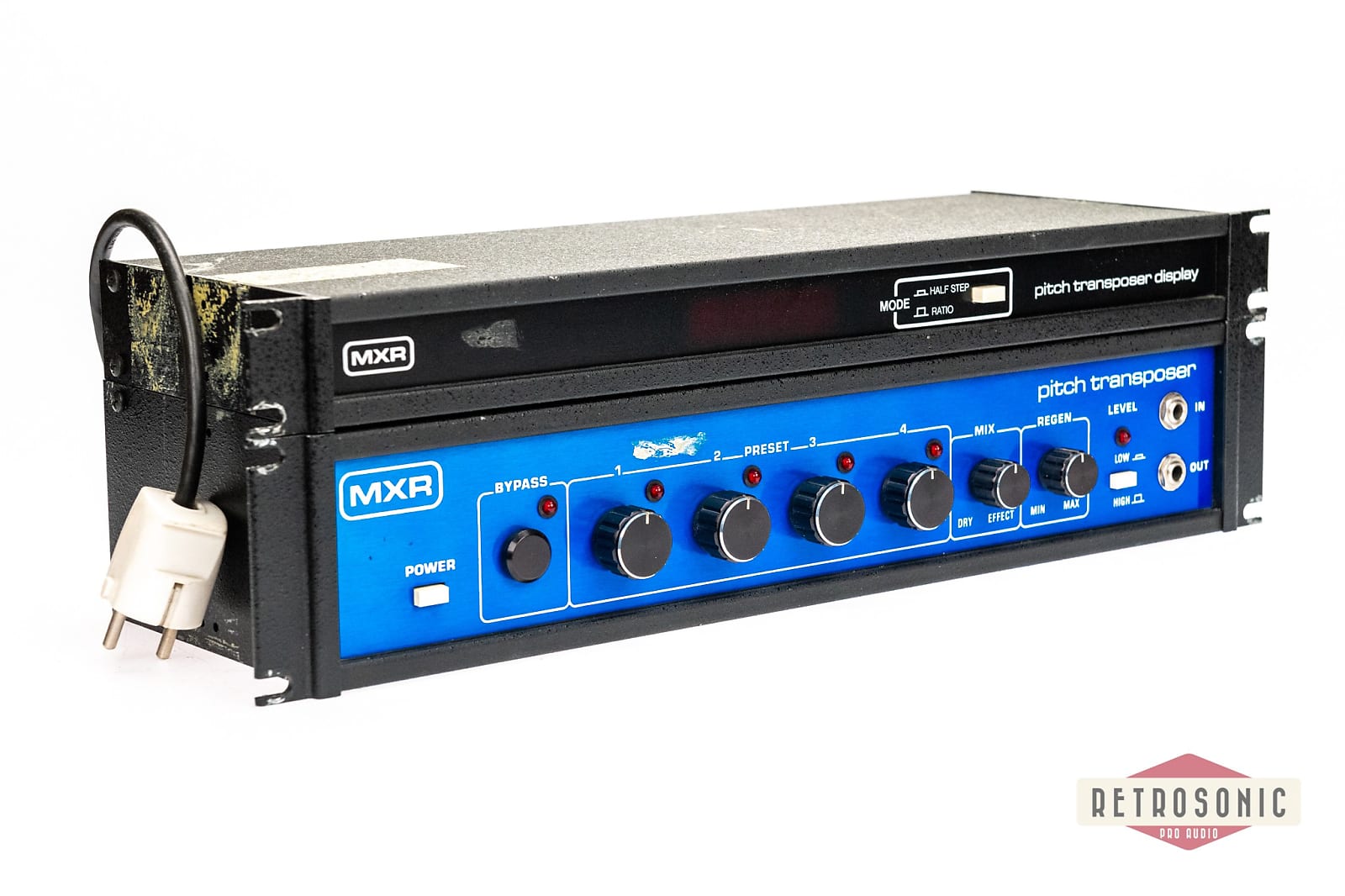

Is there anything comparable in terms of sound for Voltage Modular? It's all about the famous feedback. Does anyone know of a comparable sound as a VST plug-in? Take a look at the video:
https://www.youtube.com/watch?v=tZRQIBC13H4
UrbanCyborg
Posts: 603
Joined: Mon Nov 15, 2021 9:23 pm

Re: MXR Pitch Transposer

Post by UrbanCyborg »

If this is basically a pitch shifter, then there are several, from the one that's part of the VM900 set, to one of MRB's, or the one in the Moog Rackmount Set. If, however, it's some kind of unit that transposes to integer multiples like old guitar boxes (the original pitch doubler, for instance), then I don't know. I'd suggest in that case looking through Waverley's line on the grounds that there might be something like that there, hiding under a strange name.

Reid
Cyberwerks Heavy Industries -- viewforum.php?f=76
User avatar
ChR_is
Posts: 111
Joined: Wed Sep 22, 2021 5:48 pm

Re: MXR Pitch Transposer

Post by ChR_is »

UrbanCyborg wrote: Wed May 29, 2024 8:02 am If this is basically a pitch shifter, then there are several, from the one that's part of the VM900 set, to one of MRB's, or the one in the Moog Rackmount Set.
just making things clear. the mxr pitch transposer is a pitch shifter. there is neither a pitch shifter in the vm900 set nor MRB's modules nor in the rackmount modules. There are frequency shifters in these bundles though.

pitch shifters preserve the harmonic ratios between individual partials in a signal, whereas frequency shifters do not. frequency shifters shift every partial the same amount which creates inharmonic sounds.

that being said, you can try a granulizer for real time pitch-shifting (like mine: Micro Grain) to do crude pitch shifting. Use the grain speed to alter pitch and set the grain density carefully to minimize artefacts.
User avatar
utdgrant
Posts: 573
Joined: Wed Apr 07, 2021 8:58 am
Location: Scotland
Contact:

Re: MXR Pitch Transposer

Post by utdgrant »

You can do pitch shifting with the Zeit Year 50 Collection bundle. It can operate in two modes:

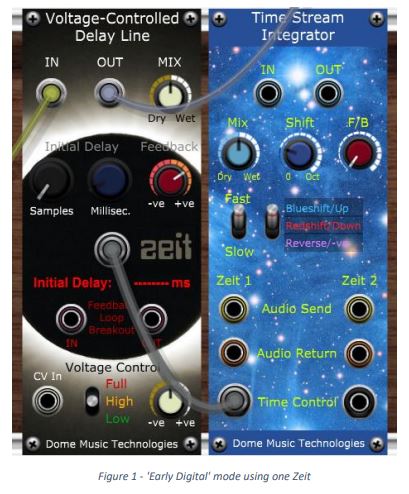

1. Single channel, no crossfade, which sounds glitchy like a 1970s vintage harmonizer:

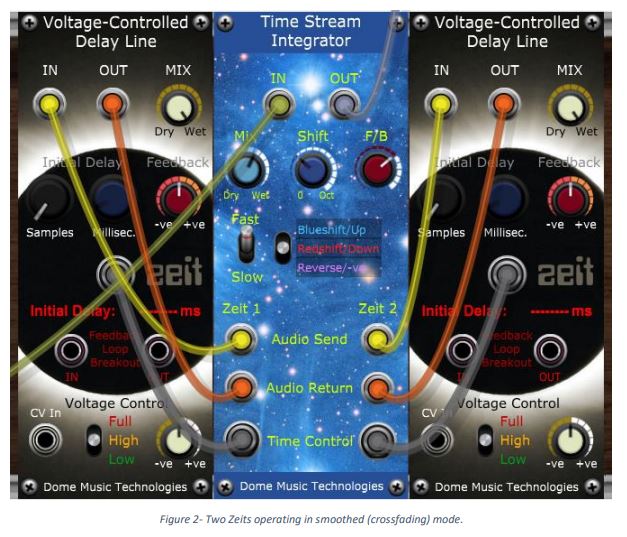

2. Twin channel, with crossfade, which sounds smoother, like an early '80s harmonizer:
There is a comprehensive instruction manual which describes its operation in detail.

Full disclosure: Zeit is one of my products, so I'm a bit biased towards it. :oops: However, there is a 28 free demo period if you want to give it a whirl in your own rack, first.
______________________
Dome Music Technologies
User avatar
utdgrant
Posts: 573
Joined: Wed Apr 07, 2021 8:58 am
Location: Scotland
Contact:

Re: MXR Pitch Transposer

Post by utdgrant »

Zeit configured as pitch shifter (with lots of feedback / regeneration!). 8-)

https://www.youtube.com/watch?v=qxB718XWKlE
______________________
Dome Music Technologies
UrbanCyborg
Posts: 603
Joined: Mon Nov 15, 2021 9:23 pm

Re: MXR Pitch Transposer

Post by UrbanCyborg »

You are, of course, correct, Chris. My bad in responding so quickly off the top of my head.

Reid
Cyberwerks Heavy Industries -- viewforum.php?f=76
User avatar
utdgrant
Posts: 573
Joined: Wed Apr 07, 2021 8:58 am
Location: Scotland
Contact:

Re: MXR Pitch Transposer

Post by utdgrant »

martin17 wrote: Wed May 29, 2024 7:35 am Does anyone know of a comparable sound as a VST plug-in?
PLUGINS4FREE is always a good place to start looking.
______________________
Dome Music Technologies
martin17
Posts: 20
Joined: Tue Nov 28, 2023 7:58 am

Re: MXR Pitch Transposer

Post by martin17 »

Thank you for everything, my digital friends. I have now obtained the solution from UDT Grant. By the way, the Time Bundle is not expensive = 4.20 bucks.

https://store.cherryaudio.com/bundles/z ... collection
