## Nonlinear Circuits Dividers incorrect?

martb
Posts: 176
Joined: Thu Aug 30, 2018 11:46 am

### Re: Nonlinear Circuits Dividers incorrect?

schoekah wrote: Sun Jan 08, 2023 6:43 am Hi,
Looks to me like "Divide and Conquer" is dividing wrong. . . at the top of the module,
3 is dividing by 4 (& 3/2 divides by 2)
5 is dividing by 6 (& 5/2 divides by 3)
7 is dividing by 8 (& 7/2 divides by 4)
Thanks!

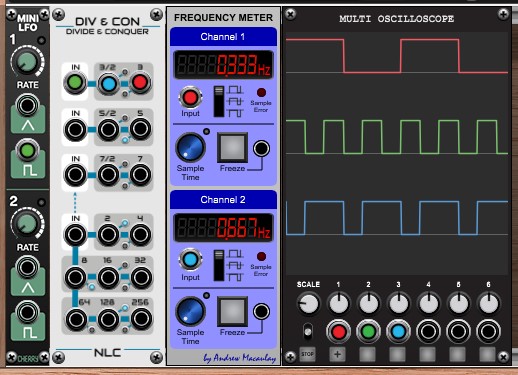

Seems to be working correctly here. The lfo is running at 1 hz dividers.jpg (66.38 KiB) Viewed 286 times
Steve W
Posts: 593
Joined: Thu Jul 16, 2020 5:55 pm

### Re: Nonlinear Circuits Dividers incorrect?

martb wrote: Sun Jan 08, 2023 9:31 am
schoekah wrote: Sun Jan 08, 2023 6:43 am Hi,
Looks to me like "Divide and Conquer" is dividing wrong. . . at the top of the module,
3 is dividing by 4 (& 3/2 divides by 2)
5 is dividing by 6 (& 5/2 divides by 3)
7 is dividing by 8 (& 7/2 divides by 4)
Thanks!
Seems to be working correctly here. The lfo is running at 1 hz
I remember some of the modules were incorrect, and that they were fixed. Is it possible the D&C was never fixed?
Steve W
Posts: 593
Joined: Thu Jul 16, 2020 5:55 pm

### Re: Nonlinear Circuits Dividers incorrect?

This is a clock divider with more outputs than you could ask for. It includes powers of 2 from 2 to 256, along with 3, 5, and 7. On top of that, there are 1.5 (3/2), 2.5 (5/2), and 3.5 (7/2). On these dividers, the half divisions are calculated when the incoming clock goes low.

The main clock input (on the bottom section) is normalled to the top three clock inputs. If nothing is plugged into the top three input jacks, they will receive the input connected to the main input.
I found my old Click-Burst-Counter preset (see above) and adapted it to use the Divide and Conquer Module. For comparison, I again used the clock dividers to count manual clicks X 32 bursts. For 10 x 32 bursted clicks (aka 320), clock divider method results are as follows

320 / 3 = 106
320 / 5 = 64
320 / 7 = 46

With the D&C Modules the results are as follows for the 320 bursted clicks:

Main in  divided by 3 = 80
Main in  divided by 5 = 53
Main in  divided by 7 = 40

Main in  divided by 3/2 = 160
Main in  divided by 5/2 = 107
Main in  divided by 7/2 = 80.

On the bottom half, I get clicks divided by 2, 4, and 8 respectively.

But, in terms of dividing pulse waves and doing a frequency measurement, divisions of 1KHz do work out (+/-).

It would seem then that as a clock divider, the math works out, but for counting its doesn't.
Steve W
Posts: 593
Joined: Thu Jul 16, 2020 5:55 pm

### Re: Nonlinear Circuits Dividers incorrect?

100 Hz Divided and Conquered:

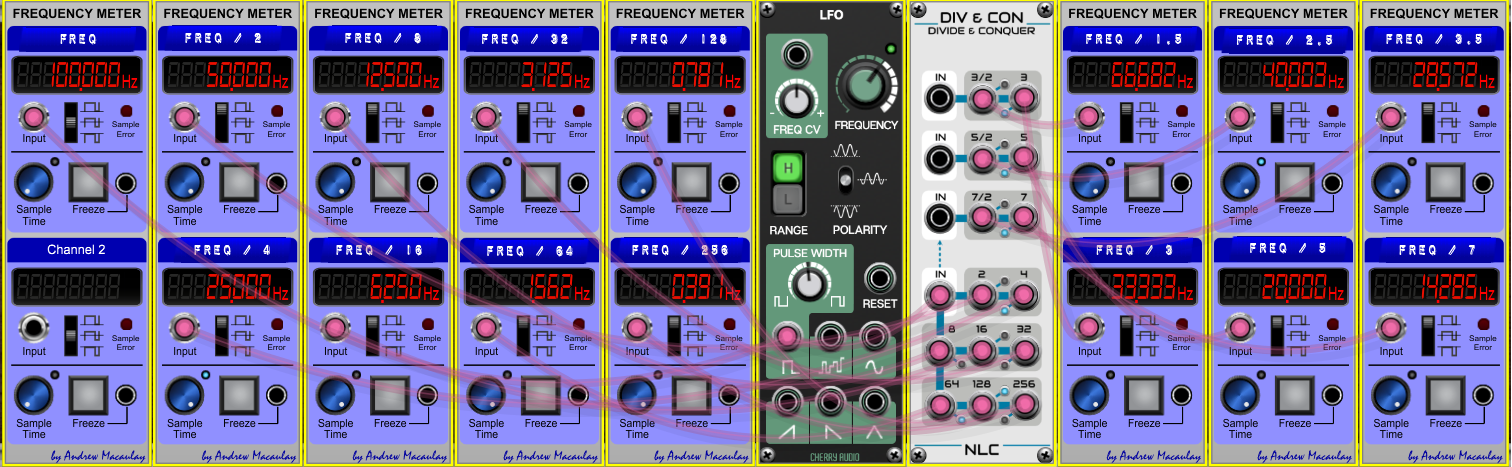

Attachments Divide & Conquer - 100 Hz.png (505.18 KiB) Viewed 259 times
schoekah
Posts: 205
Joined: Wed Oct 16, 2019 3:24 am

### Re: Nonlinear Circuits Dividers incorrect?

Hi,
Thanks for the replies all -
When using clock triggers, Div&Conc doesn't work the way I expected it to - /3 & /4 both divide by 4. . .
When using gates, Div&Conc works the way I expected . . .
note: I was using trigger b/c drum modules say "trigger in"
(EG is to hit reset on the counter)

Thanks for checking it out everyone!

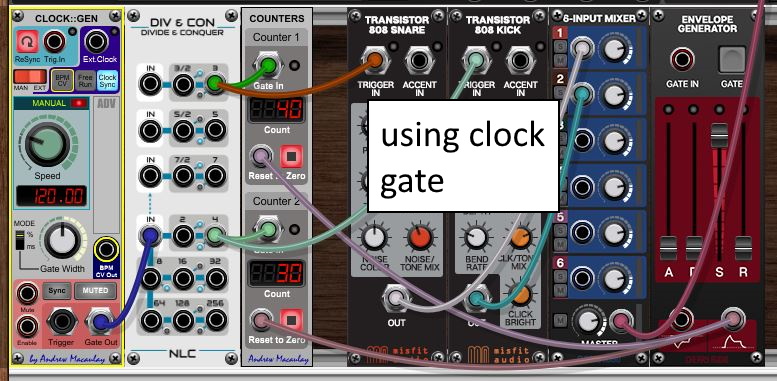

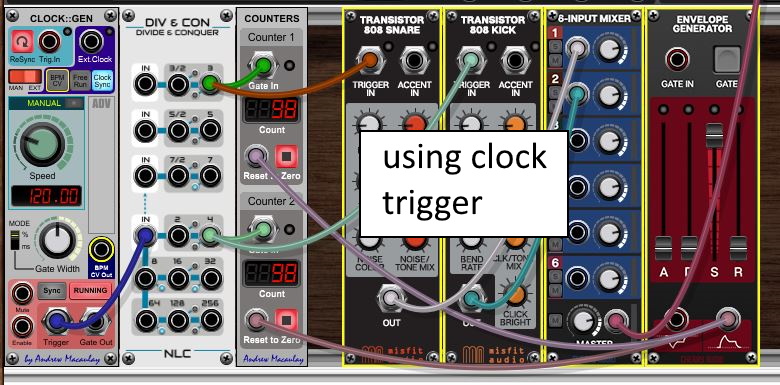

Attachments DnCTrigger.JPG (164.06 KiB) Viewed 251 times DnCGate.JPG (157.6 KiB) Viewed 251 times
Steve W
Posts: 593
Joined: Thu Jul 16, 2020 5:55 pm

### Re: Nonlinear Circuits Dividers incorrect?

schoekah wrote: Sun Jan 08, 2023 10:57 pm When using clock triggers, Div&Conc doesn't work the way I expected it to - /3 & /4 both divide by 4. . .
When using gates, Div&Conc works the way I expected . . .
Thanks for posting the screen shots and for explaining the different results you got based on triggers v. gates.
schoekah
Posts: 205
Joined: Wed Oct 16, 2019 3:24 am

### Re: Nonlinear Circuits Dividers incorrect?

Steve W wrote: Mon Jan 09, 2023 1:59 am Thanks for posting the screen shots and for explaining the different results you got based on triggers v. gates.
you bet! very helpful to have others take a look
