internal sampling rate

Post by Harry Mudd » Thu Jun 25, 2020 10:22 pm

hi folks
I discovered a slighly audio quality loss when using VM with other sampling rates than 48kHz.
Is there a chance to see an update which will gain constant audio quality at 44k1 cause I record all my stuff in this SR.
The quality loss is not dramatic but with high frequency stuff there is some aliasing audible.

Harry Mudd
Posts: 2
Joined: Wed May 13, 2020 6:29 pm

Re: internal sampling rate

Post by Harry Mudd » Wed Jul 01, 2020 6:26 pm

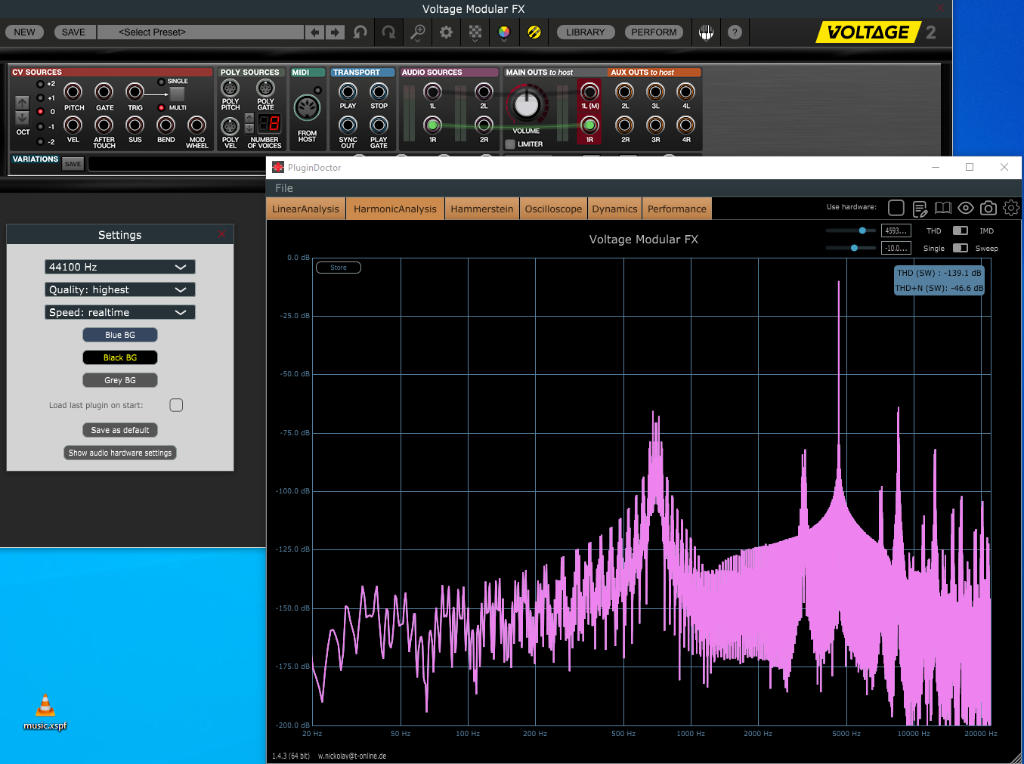

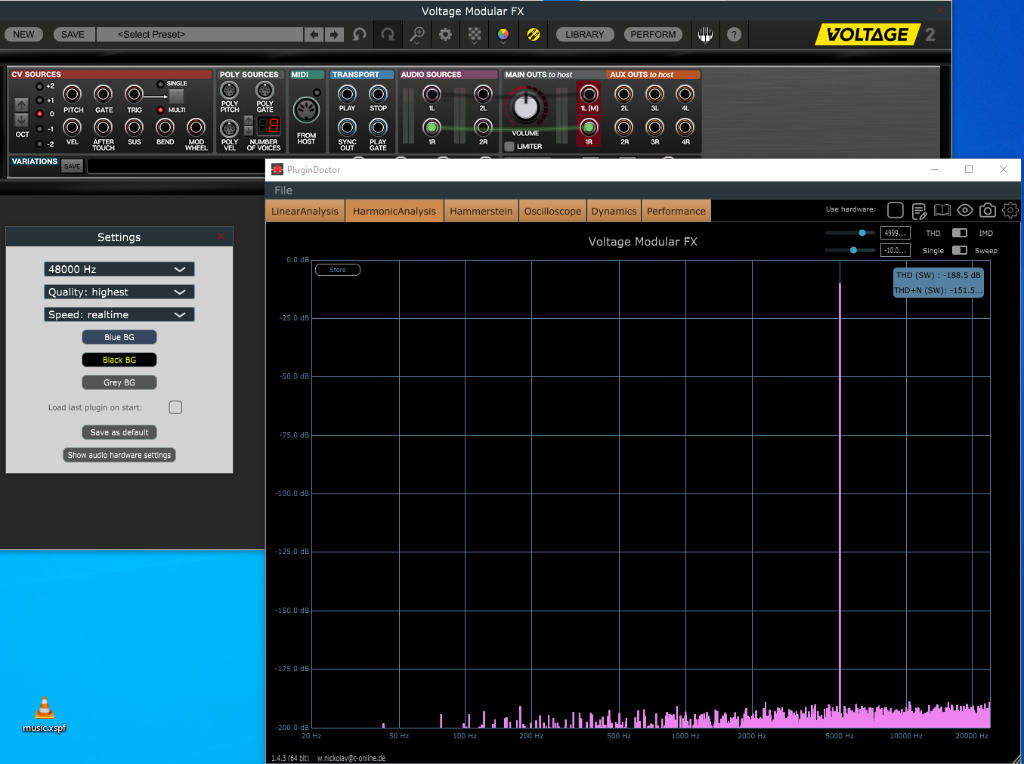

I have created 2 jpgs in PluginDoctor at 44k1 and 48k to show the difference of the audio quality.
There are no modules inserted I just conneted the input with the output.
Attachments
VM 48k.jpg
VM 48k.jpg (101.58 KiB) Viewed 167 times
VM 44k1.jpg
VM 44k1.jpg (119.88 KiB) Viewed 167 times

User avatar
cherryaudio Greg
Site Admin
Posts: 189
Joined: Wed Aug 29, 2018 5:06 pm

Re: internal sampling rate

Post by cherryaudio Greg » Fri Jul 03, 2020 10:57 pm

Hi,

Thank you for the suggestion, I'll pass it along to the software devs!

Greg

wavemechanic
Posts: 76
Joined: Thu Sep 12, 2019 5:14 am

Re: internal sampling rate

Post by wavemechanic » Sun Jul 05, 2020 12:17 pm

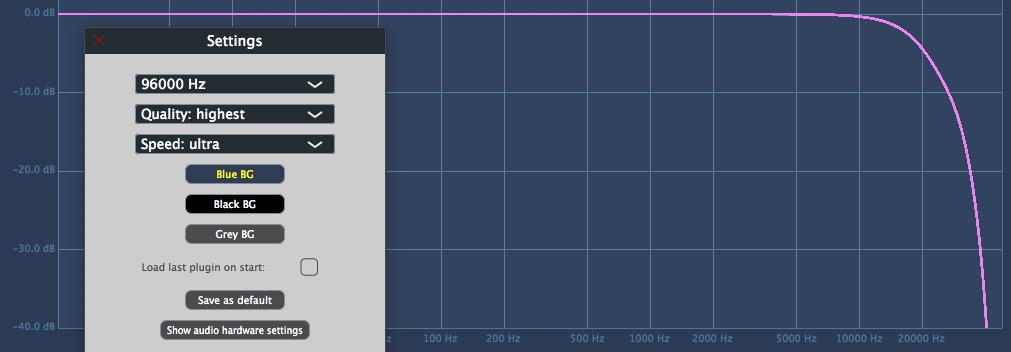

I work at 96kHz. I don't see a problem with the harmonics analysis at 96kHz, but I do see a serious concern with the imposed filter applied at 96kHz. This seems to significantly harm signal above 10kHz. Cherry, why not use a Nyquist-style filter instead of this super gradual one? I've included a suggested filter based on the iZotope RX SRC.
Attachments
screen 2020-07-05 at 5  8.11.30 AM.jpg
screen 2020-07-05 at 5 8.11.30 AM.jpg (49.27 KiB) Viewed 43 times
screen 2020-07-05 at 5  8.11.18 AM.jpg
screen 2020-07-05 at 5 8.11.18 AM.jpg (47.03 KiB) Viewed 43 times
screen 2020-07-05 at 5  8.15.24 AM.jpg
screen 2020-07-05 at 5 8.15.24 AM.jpg (7.1 KiB) Viewed 44 times
