PingPong Delay with Nucleus

Posted: Sun Jul 26, 2020 1:48 pm
by honki-bobo

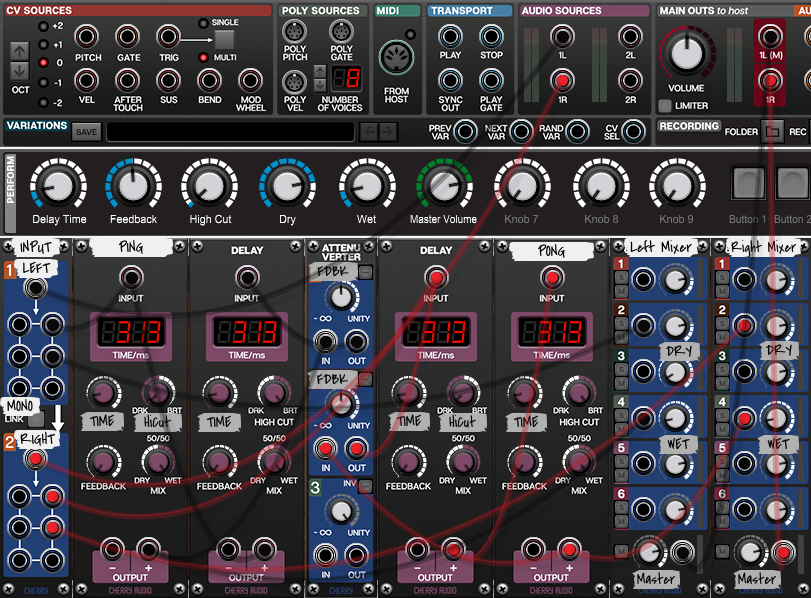

You can build a PingPong Delay with Nucleus using 4 Delay modules and an Attenuverter to control the feedback loop. In this patch the left channel is the "ping" and the right channel is the "pong" part of the delay. If you want the right channel to occur first, simply switch the left and right cables on the input and output side respectively. For a mono input signal enable the "Link" button on the Multiple module.

All important parameters are mapped to performance knobs and are marked with gray labels on the modules. Since this patch allows 100% feedback, please be careful with the feedback amount!
PingPong Delay Nucleus.png
PingPong Delay Nucleus.png (493.24 KiB) Viewed 122 times
This is just the basic PingPong Delay patch. The real fun begins when you start inserting other modules into the feedback loop, i.e. before the Attenuverter module, and start modulating their parameters. Try using filters, distortion, chorus, ...
PingPong Delay.voltagepreset
(15.5 KiB) Downloaded 11 times
